4146095

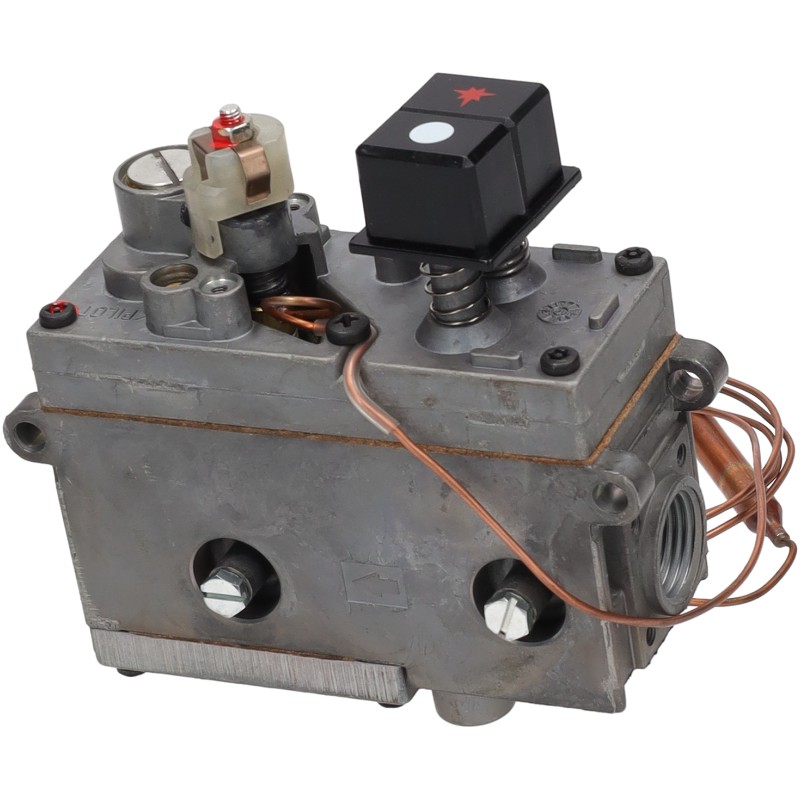

MINISIT VALVE 13-38


-
+

Recommended by S&P

Download technical sheet

Product components

1132007

COVER MINISIT


-
+

Recommended by S&P

1132001

COVER WITH PIEZO ELECTRIC LIGHTER SIT


-
+

Recommended by S&P

1125159

OIL SEAL FITTING


-
+

Recommended by S&P


-
+

Recommended by S&P

1125024

MINISIT JUNCTION 1/2


-
+

Recommended by S&P

1125021

ELBOW JUNCTION MINISIT 3/8


-
+

Recommended by S&P

4146008

MAGNET SET AC/2 MINISIT


-
+

Recommended by S&P

3108001

MINISIT HANDLE WITH ADJUSTMENT


-
+

Recommended by S&P

2101053

O-RING X MINISIT


-
+

Recommended by S&P

Contenuto in

1125021

ELBOW JUNCTION MINISIT 3/8


-
+

Recommended by S&P

1125024

MINISIT JUNCTION 1/2


-
+

Recommended by S&P

1132007

COVER MINISIT


-
+

Recommended by S&P

Details

SIT SPA
GAS THREAD GAS=inlet ø 1/2F - outlet ø 3/8F
THREAD MA THERMOCOUPLE=9X1
PRESSURE BAR MAX BAR MAX=50mbar
MINIMUM TEMPERATURE ° T°MIN=13°
MAXIMUM TEMPERATURE ° T°MAX=38°
WIRE mm WIRE=1050mm
PROBE DIAMETER MM D=8mm
PROBE LENGHT MM L=112mm
STUFFING BOX MM 1125159
RANGE OF WORK RANGE=13-38°
GASKET 2101053
TYPE 0710
KNOB x3108001
MAGNETIC UNIT Y=4146008
